Wuhan Tianqi Laser Equipment Manufacturing Co., Ltd
|

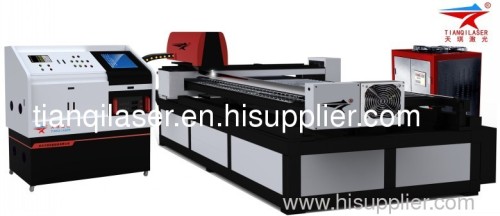

Metal pipe laser cutting machine
| Payment Terms: | T/T,L/C |
| Place of Origin: | Hebei, China (Mainland) |
|
|
| Add to My Favorites | |
| HiSupplier Escrow |
Product Detail
CE Certificated.
Large working area.
Accurate cutting, high speed and easy to operate.
Personalization of process and precision.
Mechanical feature:
The dual-use laser cutting machine, which is researched and developed by our company, can able to cut and process round and square pipe and steel sheet.
The dual-use laser cutting machine, which is researched and developed by our company, can able to cut and process round and square pipe and steel sheet.
Metal Pipe Laser Cutting Machine functions:
1. Can cut lines and holes with different diameters from different directions on the pipe.
2. Can cut inclined section at the end section of the pipe.
3. Can cut branch pipe intersected with the main circular pipe.
4. Can cut square hole, waist-shaped hole and circular hole on the pipe.
5. Can truncate the pipe.
6. Can cut all kinds of graphics on the surface of the square pipe.
1. Can cut lines and holes with different diameters from different directions on the pipe.
2. Can cut inclined section at the end section of the pipe.
3. Can cut branch pipe intersected with the main circular pipe.
4. Can cut square hole, waist-shaped hole and circular hole on the pipe.
5. Can truncate the pipe.
6. Can cut all kinds of graphics on the surface of the square pipe.
| Model | TQL-LCY620-GC4115 | TQL-LCY620-GC2513 | TQL-LCY620-GC3015 |
| Max. output power | 620W | 620W | 620W |
| Laser wavelength | 1064nm | 1064nm | 1064nm |
| Pulse frequency | 1-300HZ | 1-300HZ | 1-300HZ |
| Processing scale(length*width) | 4100mm*1500mm | 3000mm*1500mm | 2500mm*1300mm |
| Cutting thickness | 0.2mm-8mm | 0.2mm-8mm | 0.2mm-8mm |
| Max. cutting diamenter | Ø 20-Ø 320mm | Ø 20-Ø 320mm | Ø 20-Ø 320mm |
| Max. pipe cutting length | 3500mm | 2500mm | 2000mm |
| Pipe wall cutting thickness | 0.2-3mm | 0.2-3mm | 0.2-3mm |
| X. Y. Z axis geomtric positioning accuracy | ≤ ± 0.08mm/m | ≤ ± 0.08mm/m | ≤ ± 0.08mm/m |
| X. Y. Z axis re-orientation positioning accuracy | ≤ ± 0.04mm/m | ≤ ± 0.04mm/m | ≤ ± 0.04mm/m |
| Cooling mode | Water cooling | Water cooling | Water cooling |
| Electical source | 380V/50Hz/100A | 380V/50Hz/100A | 380V/50Hz/100A |
